Tuff Torq 168P3B29773 Return Spring Arm (RH)
Mfr # 168P3B29773
Item # GD-168P3B29773
In stock
$92.80/ each$105.87
Genuine Tuff Torq · Sold & shipped by RFQQQ

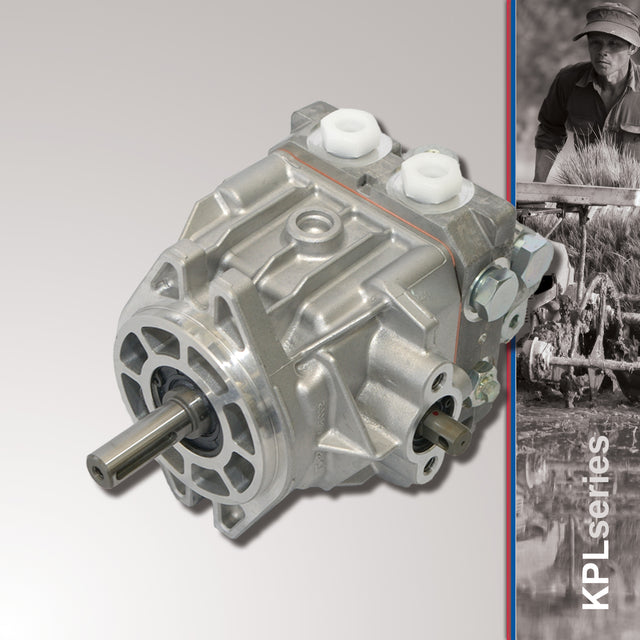

Tuff Torq KPL & DUP Pumps & Pump Parts
Tuff Torq KPL single hydraulic pumps (10, 13, 18 and 23 cc) and DUP dual pumps for commercial zero-turn and walk-behind mowers, including Dixie Chopper and John Deere, plus the return springs, arms and plates that service them. Genuine Tuff Torq, with free shipping on orders $100 and up.
- Free shipping on transaxles & kits (lower 48)
- Low Price Guarantee: we beat any advertised price by 5%
- Ships from stock, 1–2 business days
KPL & DUP Pumps & Pump Parts: repair it or replace it?
Pump problems usually show up as one side of the mower going weak, a pull to one side, or creeping in neutral.
| What it's doing | What's usually wrong | What to buy |
|---|---|---|
| Mower pulls to one side, worse when hot | Worn pump on the weak side, or the wheel motor on that side | Swap sides to confirm, then replace the pump or the motor |
| Creeps in neutral, won't center | Return spring, arm or plate worn or out of adjustment | Return springs / arm, then readjust neutral |
| No drive on one side | Bypass valve open, broken belt, or failed pump | Check bypass and belt first |
| Leaking at the input shaft | Shaft seal | Seal, or the pump if the shaft is worn |
Pumps are side- and rotation-specific (L/R, clockwise/counter-clockwise). Match the full part number on the pump label, or the OEM number, before ordering.
Complete Tuff Torq pumps
Match the full part number on the pump's label. Left/right and rotation versions are not interchangeable. Discontinued models are listed last; we'll quote the current replacement.
KPL10AR
168P3129022Replaces: Dixie Chopper 200052, White 101010000001; supersedes 168P3129021$660.25
DUP10S
77808041201Replaces: John Deere TCA18087, John Deere TCA15125$1,263.56
KPL10AL
168P3129042Replaces: Dixie Chopper 200051; supersedes 168P3129041$660.25
DUP17SB
168D7010001Replaces: John Deere MIA12189, John Deere AUC17935, John Deere DMA210760$4,365.25
DUP13A
77808141010Replaces: John Deere TCA13896$1,515.25
KPL13CRD2
168P4299030Replaces: Dixie Chopper 200081$1,187.50
KPL13AL
168P4129042$1,187.50
DUP10SA
77808041710$1,971.25
KPL13AL
168P4129050Replaces: Dixie Chopper 200109, White 101013000008$574.66
KPL18CR2
168P6129050Replaces: Dixie Chopper 200093$1,505.75
DUP10E
77808041050$2,588.75
DUP17SB
168D7010002Replaces: John Deere MIA12189; supersedes 168D7010001$4,365.25
168D7010000 DUP-17SB Pump
168D7010000$4,708.65
168P3149031 KPL-10ARB Single Pump
168P3149031$1,490.15
168P3149030 KPL-10ARB Single Pump
168P3149030$1,285.63
168P3149041 KPL-10AL Single Pump
168P3149041$1,950.30
168P3149111 KPL-10CRB Single Pump
168P3149111$1,000.63
168P3249030 KPL10CLY Single Pump
168P3249030$1,201.58
168P3B29032 KPL-10ALP Single Pump
168P3B29032$1,342.77
168P3B29031 KPL-10ALP Single Pump
168P3B29031$1,243.31
168P3429050 KPL10CRN2 Single Pump
168P3429050$1,144.58
168P3B29021 KPL10ARH Single Pump
168P3B29021$964.42
168P4249012 KPL-13ALD Single Pump
168P4249012$1,257.05
168P4149030 KPL13ARB Single Pump
168P4149030$1,100.14
168P4249031 KPL-13CLY Single Pump
168P4249031$1,458.11
168P3D49010 KPL10ARX Single Pump
168P3D49010$1,375.78
168P4149040 KPL13ALB Single Pump
168P4149040$1,100.14
168P4129041 KPL-13AL Single Pump
168P4129041$1,163.93
168P4129022 KPL13AR Single Pump
168P4129022$1,259.03
168P4249030 KPL13CLY Single Pump
168P4249030$1,313.34
168P4299031 KPL13CRD2 Single Pump
168P4299031$1,352.95
168P4B29031 KPL-13ALP Single Pump
168P4B29031$1,571.32
168P4B29030 KPL13ALP Single Pump
168P4B29030$1,457.22
168P4E49042 KPL13ARF Single Pump
168P4E49042$1,774.09
168P4E49041 KPL-13ARF Single Pump
168P4E49041$1,640.09
168P6129051 KPL18CR2 Single Pump
168P6129051$1,573.80
168P6149020 KPL18ALQ Single Pump
168P6149020$1,573.80
168P6149010 KPL18ARQ Single Pump
168P6149010$1,573.80
168P8B29011 KPL23ALP Single Pump
168P8B29011$1,449.20
77808041032 DUP10C Pump
77808041032$1,384.94
168PHB29011 KPS23ALP Single Pump
168PHB29011$1,498.25
KPL10CRB
168P3149112$1,082.39
KPS23ALP
168PHB29015$3,147.58
KPL18CL2
168P6129060$1,573.80
KPL10AL
168P3129041Replaces: Dixie Chopper 200051$660.25
KPL18CRD
168P6249021Replaces: Dixie Chopper 200085, White 101018000004; supersedes 168P6249020$1,581.75
KPL18ALD
168P6249011Replaces: Dixie Chopper 200086, White 101018000003$1,767.00
KPL10AR
168P3129021Replaces: Dixie Chopper 200052$660.25
KPL13ALD
168P4249011Replaces: Dixie Chopper 200080$1,187.50
KPL13AR
168P4129021Replaces: Dixie Chopper 200110$1,135.25Don't see your number? We stock the full Tuff Torq line through our distributor. Send us the numbers off your tag and we'll quote the exact unit, usually within the hour.
Use the part finder
KPL & DUP Pumps & Pump Parts repair kits & components
KPL service parts:
| Part | What it is |
|---|---|
| 168P3B29773 | Return spring arm (RH) |
| 168P8B29710 | Return spring plate |
| 168P8B29760 | Return spring |
| 168PHB29770 | Return spring |
| 168PHB29780 | Return spring |
| 168PGA01190 | Flushing spring (L) |
| 168H3A29950 | Charge spring |
Fans, pulleys, axles, filters & oil
Tuff Torq 168P3129040 KPL-10AL
Mfr # 168P3129040
Item # GD-168P3129040
In stock · Free shipping
$612.80/ each$700.34
Tuff Torq 168P3B29022 KPL10ARH
Mfr # 168P3B29022
Item # GD-168P3B29022
In stock · Free shipping
$1,041.58/ each$1,188.49
Tuff Torq 168P4129020 KPL-13AR
Mfr # 168P4129020
Item # GD-168P4129020
In stock · Free shipping
$1,058.75/ each$1,210.00
Tuff Torq 168P4299020 KPL-13CRD2
Mfr # 168P4299020
Item # GD-168P4299020
In stock · Free shipping
$553.44/ each$632.50
Tuff Torq 168P6249010 Pump-hydro RH KPL-18ALD
Mfr # 168P6249010
Item # GD-168P6249010
In stock · Free shipping
$808.50/ each$924.00
Tuff Torq 168P6249020 Pump-hydro LH KPL-18CRD
Mfr # 168P6249020
Item # GD-168P6249020
In stock · Free shipping
$808.50/ each$924.00

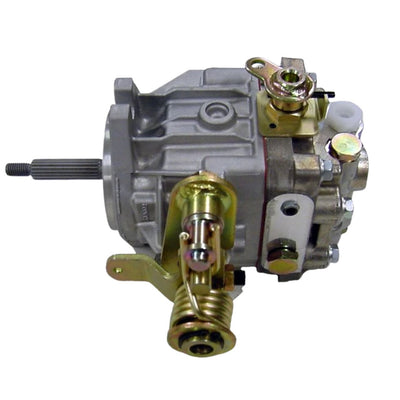

Tuff Torq 168PHB10001 KPS23ALPD
Mfr # 168PHB10001
Item # GD-168PHB10001
In stock · Free shipping
$4,578.29/ each$5,224.11
Tuff Torq 168PGB02000 KPS18TA
Mfr # 168PGB02000
Item # GD-168PGB02000
In stock · Free shipping
$5,046.52/ each$5,758.40

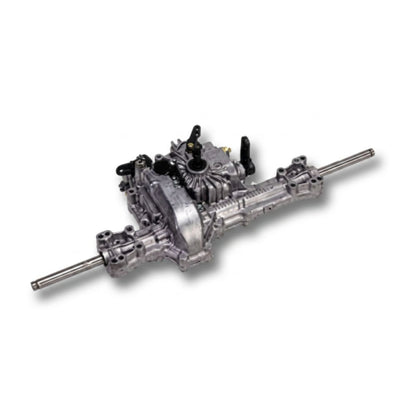

Tuff Torq 168PHB14000 KPS23ALPH
Mfr # 168PHB14000
Item # GD-168PHB14000
In stock · Free shipping
$4,218.73/ each$4,813.83
Tuff Torq 168PHB20000 KPS23CLP
Mfr # 168PHB20000
Item # GD-168PHB20000
In stock · Free shipping
$3,708.69/ each$4,231.84

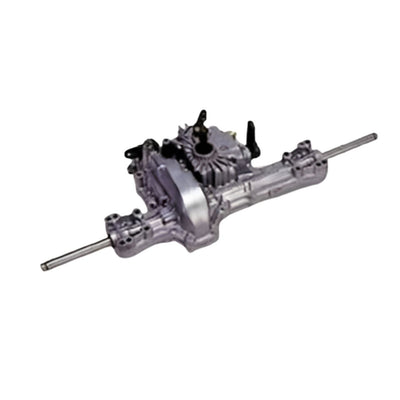

Tuff Torq 168PHB15000 KPS23SANLDJ
Mfr # 168PHB15000
Item # GD-168PHB15000
In stock · Free shipping
$4,218.73/ each$4,813.83
Tuff Torq 168PHB40060 KPS-23SCE-RGF
Mfr # 168PHB40060
Item # GD-168PHB40060
In stock · Free shipping
$4,713.78/ each$5,387.18
Tuff Torq 168PHB40050 KPS-23SCE-RGE
Mfr # 168PHB40050
Item # GD-168PHB40050
In stock · Free shipping
$4,431.06/ each$5,064.07
Tuff Torq 17808001350 Valve Plate DUP-10
Mfr # 17808001350
Item # GD-17808001350
In stock
$31.51/ each$36.01

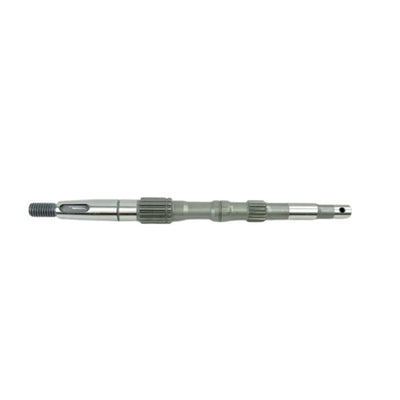

Tuff Torq 17808002011 Pump Shaft Dup 10
Mfr # 17808002011
Item # GD-17808002011
In stock
$44.55/ each$52.10
Tuff Torq 168P8B29710 Return Spring Plate
Mfr # 168P8B29710
Item # GD-TUF168P8B29710
In stock
$43.58/ each
How to read your Tuff Torq tag
There's a white barcode label on the back of the transaxle (some tractors repeat it under the seat). It carries three numbers:
- Top left: the Tuff Torq part number. 11 characters, e.g. 7A646084181. This identifies the complete unit. Order a replacement by this number.
- Top right: the serial number. Repair kits and internal parts are chosen by serial, because Tuff Torq changed internals within the same model code.
- Bottom right: the OEM part number (John Deere AM/MIA, Husqvarna 5324xxxxx, MTD/Cub Cadet 618-xxxxx). If the top numbers are unreadable, this one gets us there too.
No tag at all? Your tractor's parts manual lists the transaxle under the OEM number, and our finder accepts the tractor model as a last resort.
Enter my numbers Full identification guide →7A646084181Tuff Torq part no.1803-2 07451Serial no.
K46BTModel532 43 83-54OEM part no.
KPL & DUP Pumps & Pump Parts specifications & compatibility
| KPL-10 | KPL-13 | KPL-18 | KPL-23 | |
|---|---|---|---|---|
| Displacement | 10 cc/rev | 13 cc/rev | 18 cc/rev | 23 cc/rev |
| Charge pump | 3 cc/rev | 3 cc/rev | 3 cc/rev | 4 or 6 cc/rev |
| Input speed | Max.: 3,600 rpm; Min.: 600 rpm | Max.: 3,600 rpm; Min.: 600 rpm | Max.: 3,600 rpm; Min.: 600 rpm | Max.: 3,600 rpm; Min.: 600 rpm |
| Pressure | Continuous: 9.8 MPa (100 bar); Intermittent: 14.7 MPa (150 bar); Peak: 24.5 MPa (250 bar) | Continuous: 9.8 MPa (100 bar); Intermittent: 14.7 MPa (150 bar); Peak: 24.5 MPa (250 bar) | Continuous: 9.8 MPa (100 bar); Intermittent: 14.7 MPa (150 bar); Peak: 24.5 MPa (250 bar) | Continuous: 9.8 MPa (100 bar); Intermittent: 14.7 MPa (150 bar); Peak: 24.5 MPa (250 bar) |
| Input shaft | Optional (Spline, Key or Tang) | Optional (Spline, Key or Tang) | Optional (Spline, Key or Tang) | Optional (Spline, Key or Tang) |
| Mounting | SAE "A" | SAE "A" | SAE "A" | SAE "A" |
| Dry weight | 3.6 kg (7.9 lb) | 3.6 kg (7.9 lb) | 6.8 kg (15 lb) | 10 kg (22 lb) |
Suffixes: L / R = control-shaft side, D = with dump/bypass variation. Match the full part number on the pump label.
KPL & DUP Pumps & Pump Parts questions we get every week
Is my Dixie Chopper / John Deere pump a Tuff Torq?
Many are. Dixie Chopper numbers such as 200051, 200052 and 200080, and several John Deere numbers, are Tuff Torq KPL or DUP pumps under the mower brand's number. Send us the OEM number and we'll match it.
Which Tuff Torq transaxle fits my John Deere, Husqvarna, Craftsman or Cub Cadet?
Look up your mower by brand and model: John Deere · Husqvarna & Craftsman · Cub Cadet, MTD & Troy-Bilt · Simplicity, Snapper & Massey Ferguson · Dixie Chopper, Toro & Exmark. Each table shows the Tuff Torq unit your model uses and the OEM number it replaces.
Left or right: how do I tell?
Check the label. L/R in the model (KPL-10AL vs KPL-10AR) refers to control-shaft side and rotation. Left and right pumps are not interchangeable.
Where do I find the Tuff Torq part number?
On the ID label on the transaxle case, usually on top or on the side near the input pulley. It shows the model (for example K57R) and an 11-digit part number (for example 7A646084020). Our part number guide shows where to look on each series.
