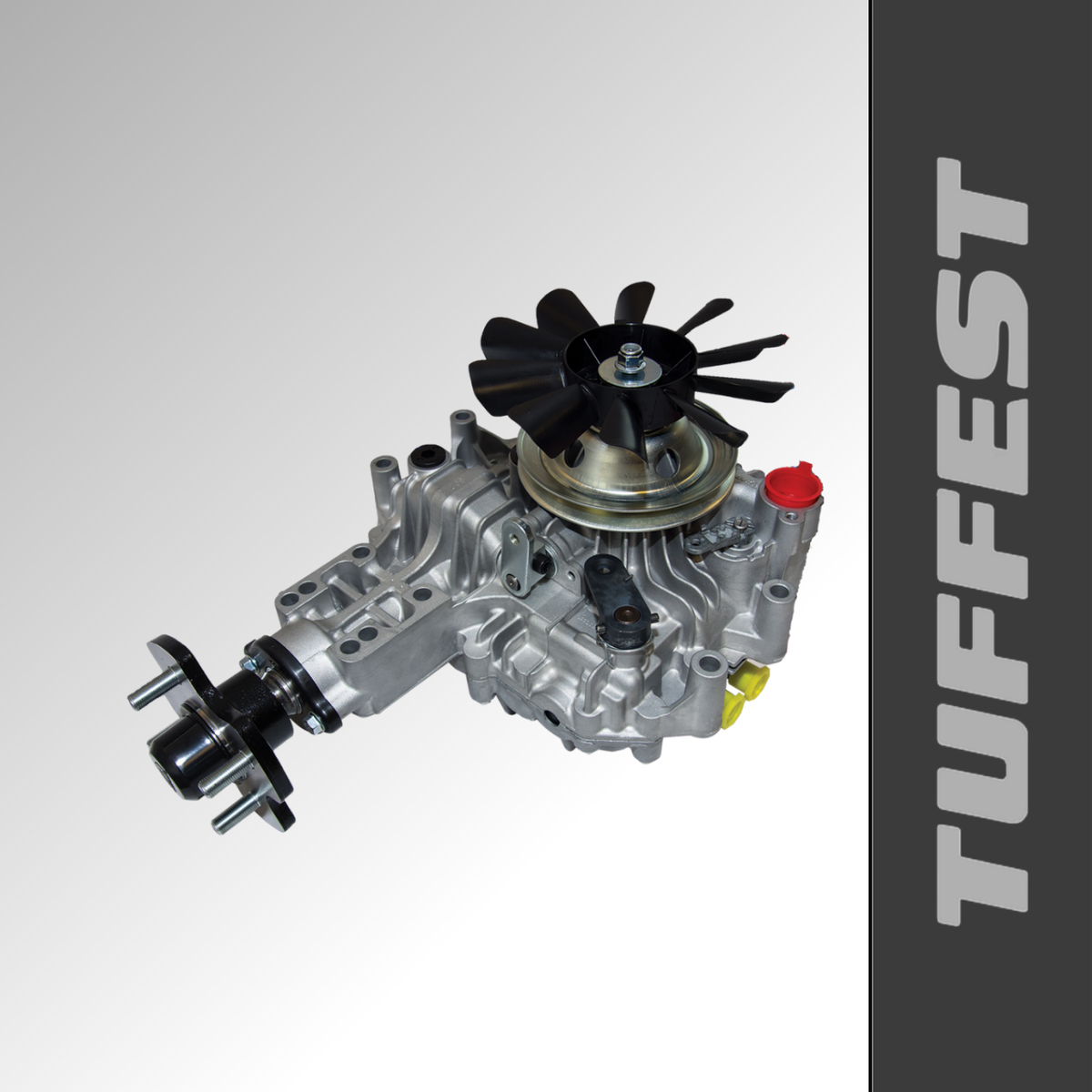

Tuff Torq 787Q0624222 TZT13GL Zero-Turn Transaxle, Left Hand (LH)
MPN 787Q0624222
Replaces supersedes 787Q0624221, 787Q0624220
Overview
Genuine, brand-new Tuff Torq 787Q0624222 (TZT13GL) hydrostatic transaxle from the Tuff Torq TZ/TZT zero-turn family, left-hand side. Free shipping to the lower 48 states.
Part details
| Tuff Torq part # | 787Q0624222 |
|---|---|
| Model | TZT13GL |
| Side | Left hand (LH) |
| Supersedes | 787Q0624221, 787Q0624220 |
Tuff Torq TZT13 series specifications
| Application | Zero-Turn Mower - Commercial |
|---|---|
| Reduction ratio | 16.65 |
| Rated axle torque | 294 Nm (216.8 lb-ft) |
| Pump / motor displacement | 13/13 cc/rev |
| Max vehicle speed | 12-13 mph |
| Tire size | 24+ in |
| Brake | Internal Wet Disk |
Series data from Tuff Torq. Ratio, pulley, fan and control-arm setup vary by model; match your part number.
Make sure it fits
Every Tuff Torq unit has an ID label on the case showing the model (like TZT13GL) and the 11-digit part number. Match 787Q0624222 to that label, or to the OEM number in your mower's parts list. Can't read the label? See How to find your Tuff Torq part number, or send us a photo through the Part Finder and we'll confirm the match before you buy.
More TZ/TZT zero-turn units, repair kits and parts: Tuff Torq TZ/TZT zero-turn hub · All Tuff Torq
FAQ
Is this a genuine Tuff Torq part?
Yes. 787Q0624222 is new, genuine Tuff Torq, sold under Tuff Torq's own part number. It is not a rebuilt, used or aftermarket unit.
Will it fit my mower?
Fit depends on your exact model and serial number. Match the part number on your unit's label, or send us your mower details and we'll confirm for free.
