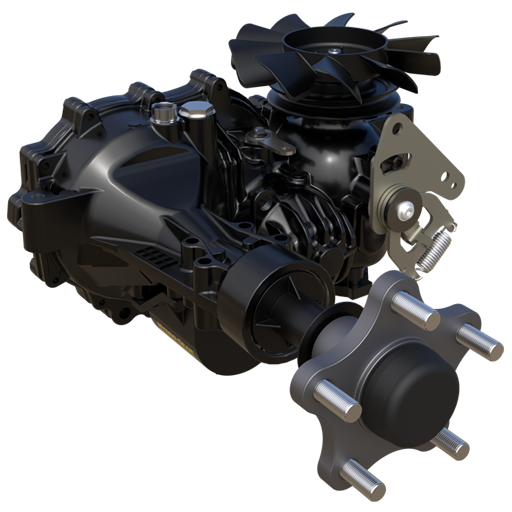

Hydro-Gear ZT-3800 — ZZ-2KEF-SLKC-1UXX (representative image) Click to zoom

Hydro-Gear ZZ-2KEF-SLKC-1UXX ZT-3800 Hydrostatic Transaxle

MPN ZZ-2KEF-SLKC-1UXX

Free shippingIn stockHydrostatic Transaxle

Overview

Hydro-Gear ZZ-2KEF-SLKC-1UXX is a genuine Hydro-Gear ZT-3800 hydrostatic transaxle. The ZT-3800 (model prefix ZZ) is the top of Hydro-Gear's ZT-3400/3600/3800 commercial transaxle family.

Order by the full model number on the Hydro-Gear label (ZZ-2KEF-SLKC-1UXX). Hydro-Gear builds each model to an OEM specification and advises against substituting a different model, so match every character; zero-turns use a left and a right unit — check which side you need.

More on this series: Hydro-Gear ZT-3400 guide · Shop all ZT-3400 transaxles

Fits these mowers

Brand Model
Ferris SRS Z2

Used as a pair with ZZ-1KEF-SLKB-1UXX on Ferris SRS Z2 — check your label for which side you have.

Fitment from Hydro-Gear's cross-reference. Always confirm the number on your unit's label before ordering.

Specifications

Brand Hydro-Gear (genuine)
Model / part number ZZ-2KEF-SLKC-1UXX
Series ZT-3800
Type Hydrostatic Transaxle
Speed (up to) 11 mph (series spec)
Max machine weight 1800 lb gross vehicle weight (series spec)
Unit weight 35.8 lb (series spec)
Reduction 21.09:1 (series spec)
Fluid 20W50 engine oil (series spec)
Filter External, Hydro-Gear 52114

Service notes

  • Oil and filter: 20W50 engine oil and Hydro-Gear filter 52114. First change at 75–100 hours, then every 400 hours.
  • Hydro-Gear covers the ZT-3800 in the same service manual as the ZT-3400 and ZT-3600 (BLN-0108).
  • After installing, purge air from the system following Hydro-Gear's procedure: wheels off the ground, cycle forward/reverse 5–6 times with the bypass open, then 5–6 times closed, and top up the oil.

Shipping and price

  • Free shipping (lower 48).
  • Low Price Guarantee: find a lower advertised price on a genuine Hydro-Gear ZZ-2KEF-SLKC-1UXX and we'll beat it by 5% (before purchase). Details.

Frequently asked questions

Where do I find my Hydro-Gear model number?

On the Hydro-Gear label on the unit (on the transaxle). Current numbers look like ZX-GHEE-3K5A-13LX. See how to find your Hydro-Gear part number.

Can I use a different model that looks the same?

Hydro-Gear strongly discourages using any model not originally specified by the mower maker; similar-looking units can differ internally. Send us your label number and mower model through the Hydro-Gear part finder and we'll identify the correct current unit.
