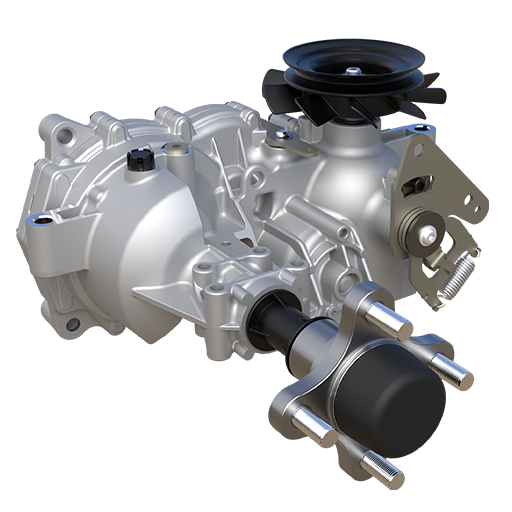

Hydro-Gear EZT (ZT-2200) — ZC-DUBB-3A7C-1PPX (representative image) Click to zoom

Hydro-Gear ZC-DUBB-3A7C-1PPX EZT Hydrostatic Transaxle

MPN ZC-DUBB-3A7C-1PPX

Replaces John Deere AUC12605

Free shippingIn stockHydrostatic Transaxle

Overview

Hydro-Gear ZC-DUBB-3A7C-1PPX is a genuine Hydro-Gear EZT (ZT-2200) hydrostatic transaxle. The EZT (ZT-2200) is Hydro-Gear's most popular residential-grade integrated transaxle for zero-turn mowers.

Order by the full model number on the Hydro-Gear label (ZC-DUBB-3A7C-1PPX). Hydro-Gear builds each model to an OEM specification and advises against substituting a different model, so match every character; zero-turns use a left and a right unit — check which side you need.

Replaces / cross-reference: John Deere AUC12605. Confirm against your mower's parts list.

More on this series: Hydro-Gear EZT (ZT-2200) guide · Shop all EZT transaxles

Fits these mowers

Brand Model
John Deere ZTrak Z315E, Z320M, Z320R

Used as a pair with ZC-AUBB-3A7B-1PPX on John Deere ZTrak Z315E, Z320M, Z320R — check your label for which side you have.

Fitment from Hydro-Gear's cross-reference. Always confirm the number on your unit's label before ordering.

Specifications

Brand Hydro-Gear (genuine)
Model / part number ZC-DUBB-3A7C-1PPX
Series EZT (ZT-2200)
Type Hydrostatic Transaxle
Pump / motor displacement 10 cc/rev variable pump, 10 cc/rev fixed motor (series spec)
Input speed 3000 rpm max (no load), 1800 rpm min (loaded) (series spec)
Output torque (up to) 215 lb-ft (291 Nm) (series spec)
Speed (up to) 7 mph (series spec)
Max machine weight 900 lb (406 kg) gross vehicle weight (series spec)
Axle 1.0 in, DD or 4-bolt flange (series spec)
Unit weight 29 lb (13 kg) (series spec)
Fluid 20W50 engine oil; 56 fl oz / 1.75 qt (1650 ml) (series spec)
Filter Internal mesh filter (no service filter part number)

Service notes

  • Factory filled and sealed: Hydro-Gear's manual says the EZT does not require routine oil maintenance. Add or change oil only for contamination or degradation.
  • Oil is 20W50 engine oil, about 56 fl oz (1.75 qt) per unit. Only units with E or F as the 3rd character of the model number have a drain plug; drain only when the oil is below 100 °F.
  • After installing, purge air from the system following Hydro-Gear's procedure: wheels off the ground, cycle forward/reverse 5–6 times with the bypass open, then 5–6 times closed, and top up the oil.

Shipping and price

  • Free shipping (lower 48). Ships from distributor stock.
  • Low Price Guarantee: find a lower advertised price on a genuine Hydro-Gear ZC-DUBB-3A7C-1PPX and we'll beat it by 5% (before purchase). Details.

Frequently asked questions

Where do I find my Hydro-Gear model number?

On the Hydro-Gear label on the unit (on the transaxle). Current numbers look like ZC-DUBB-4MDC-3PPA. See how to find your Hydro-Gear part number.

Can I use a different model that looks the same?

Hydro-Gear strongly discourages using any model not originally specified by the mower maker; similar-looking units can differ internally. Order the exact number on your label.

Does the EZT need oil changes?

Hydro-Gear's service manual says the EZT is factory filled and sealed and does not require oil maintenance. Change the oil only if it is contaminated or degraded. Units with E or F as the 3rd character of the model number have a drain plug.
