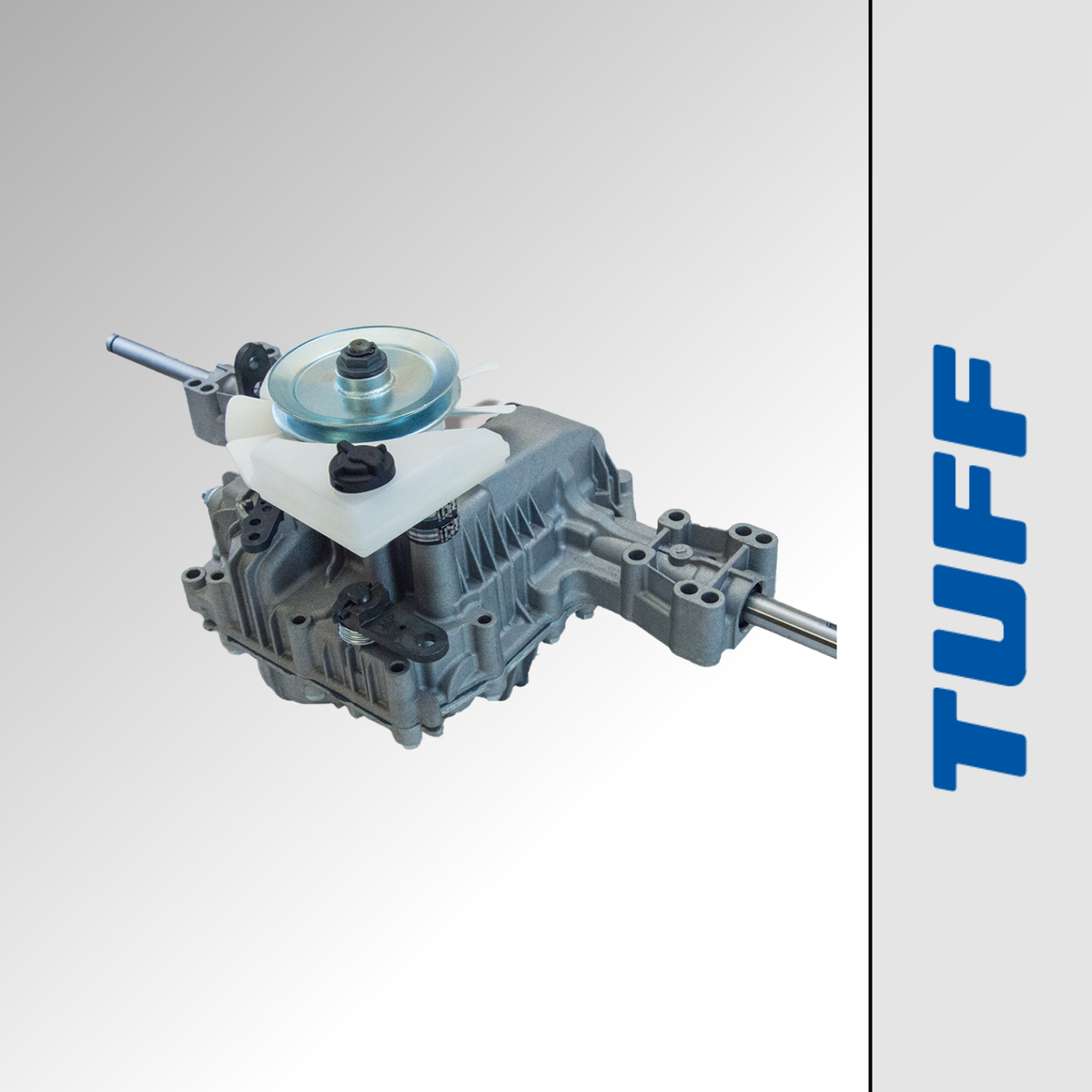

Tuff Torq K46H transaxle (series photo) Click to zoom

Tuff Torq 7A646024070 K46H Transaxle

MPN 7A646024070

Replaces Husqvarna 506986401, Husqvarna 506986402, Husqvarna 506986301

Free shippingLow Price GuaranteeIn stockParts

Overview

Genuine, brand-new Tuff Torq 7A646024070 (K46H) hydrostatic transaxle from the Tuff Torq K46 family. Free shipping to the lower 48 states, and our Low Price Guarantee covers it.

Part details

Tuff Torq part # 7A646024070
Replaces OEM # Husqvarna 506986401, Husqvarna 506986402, Husqvarna 506986301
Model K46H

Tuff Torq K46 series specifications

Application Rear Engine Riding Mower; Lawn Tractor
Reduction ratio 28.04:1; 21.53:1
Rated axle torque 28.04:1 = 231.4 Nm (171 lb-ft); 21.53:1 = 177.7 Nm (131 lb-ft)
Pump / motor displacement 7/10 cc/rev
Axle shaft 19.05 mm (0.75 in)
Brake Internal Wet Disc
Dry weight 12.5 kg (27.6 lb)

Series data from Tuff Torq. Ratio, pulley, fan and control-arm setup vary by model; match your part number.

Fits these machines

Confirmed against OEM parts catalogs and dealer fit lists for this part number or its OEM number.

  • Husqvarna: Rider R213C, Rider R214 / R214C / R214T / R214TC, Rider R215TX, Rider R216 (and Rider 216 AWD per owner's manual), Rider R220T, Rider R316T / R316TX, Rider R318 / R318X, Rider R13C, Rider 13, Rider 13 BIO / BioClip, Rider 15, Rider 15T, Rider 16C, Rider 155, Rider 175, Rider 18

Mower makers sometimes switch transaxles mid-production, so serial number matters. Not on the list? Send us your model and serial and we'll check.

Make sure it fits

Every Tuff Torq unit has an ID label on the case showing the model (like K46H) and the 11-digit part number. Match 7A646024070 to that label, or to the OEM number in your mower's parts list. Can't read the label? See How to find your Tuff Torq part number, or send us a photo through the Part Finder and we'll confirm the match before you buy.

More K46 units, repair kits and parts: Tuff Torq K46 hub · All Tuff Torq

FAQ

Is this a genuine Tuff Torq part?

Yes. 7A646024070 is new, genuine Tuff Torq, sold under Tuff Torq's own part number. It is not a rebuilt, used or aftermarket unit.

What if I find it cheaper?

Tell us before you order. Under our Low Price Guarantee we beat any advertised, in-stock U.S. price on the same new Tuff Torq part by 5%, comparing delivered prices.

Will it fit my mower?

Fit depends on your exact model and serial number. Match the part number on your unit's label, or send us your mower details and we'll confirm for free.
