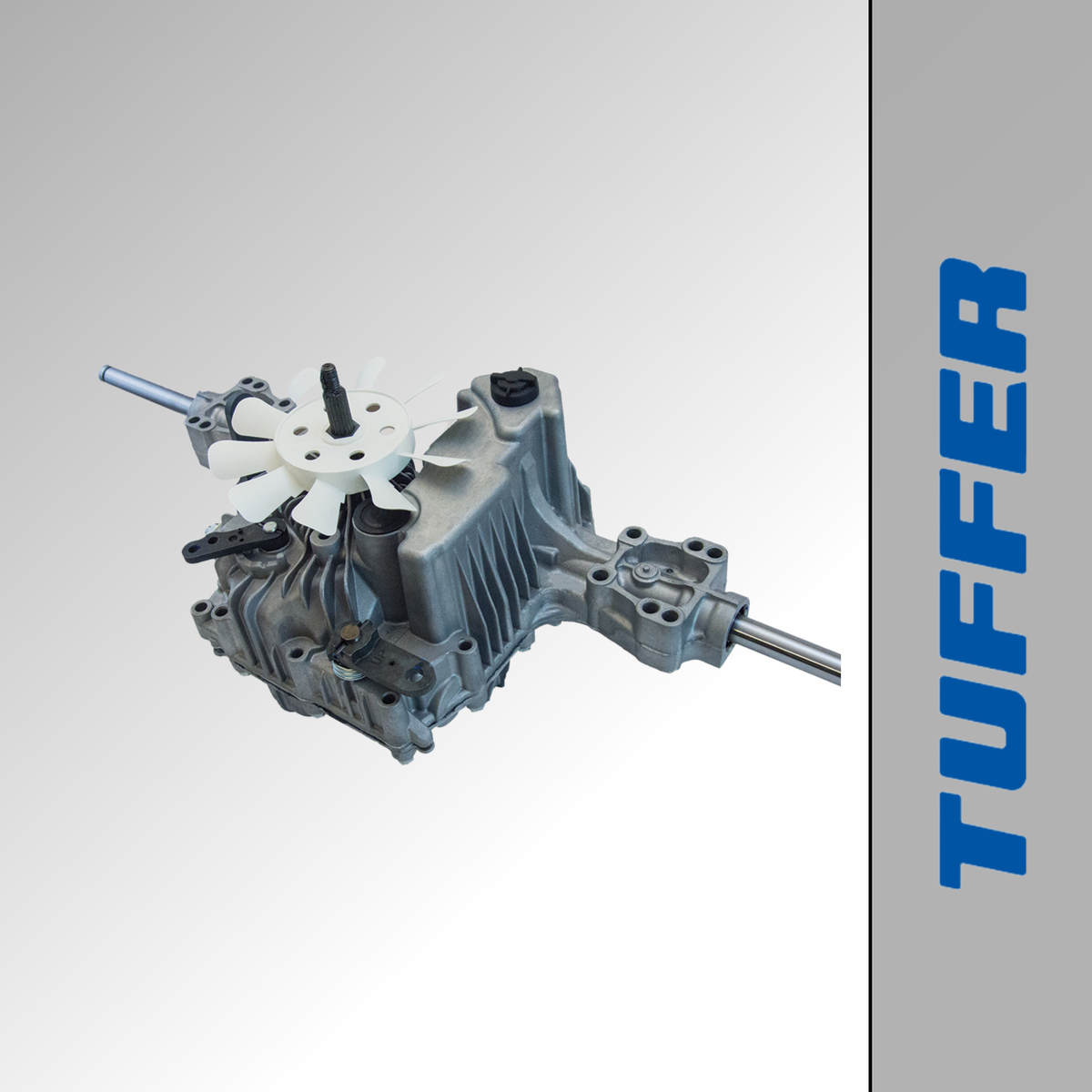

Tuff Torq K574A transaxle (series photo) Click to zoom

Tuff Torq 787Q0324011 K574A Transaxle

MPN 787Q0324011

Replaces supersedes 787Q0324010

Free shippingIn stockParts

Overview

Genuine, brand-new Tuff Torq 787Q0324011 (K574A) hydrostatic transaxle from the Tuff Torq K57 family. Ships without oil; fill with Tuff Tech drive fluid before running. Free shipping to the lower 48 states.

Part details

Tuff Torq part # 787Q0324011
Model K574A
Prefilled with oil No
Supersedes 787Q0324010

Tuff Torq K574 series specifications

Application 4WD Tractors and Mowers; Ride-on Mowers; Articulating Mowers; 4WD industrial sweepers; Self-Propelled industrial machines
Reduction ratio 31.68:1; 28.04:1; 21.53:1
Rated axle torque 31.68:1 = 255 Nm (188 ft-lb); 28.04:1 = 235.4 Nm (174 ft-lb); 21.53:1 = 180.7 Nm (133 ft-lb)
Pump / motor displacement 7/10 cc/rev
Axle shaft 19.05 mm (0.75 in)
Brake Internal Wet Disc
Dry weight 12.5 kg (27.6 lb)

Series data from Tuff Torq. Ratio, pulley, fan and control-arm setup vary by model; match your part number.

Fits these machines

Listed by parts dealers for this part number, its OEM number or its Tuff Torq model code. Please confirm with the number on your unit's label. This unit changed by serial number, so send us your transaxle label before ordering.

  • Husqvarna: Rider R 322T AWD (rear transaxle) (2014-), Rider R 216T AWD (rear transaxle)

Mower makers sometimes switch transaxles mid-production, so serial number matters. Not on the list? Send us your model and serial and we'll check.

Make sure it fits

Every Tuff Torq unit has an ID label on the case showing the model (like K574A) and the 11-digit part number. Match 787Q0324011 to that label, or to the OEM number in your mower's parts list. Can't read the label? See How to find your Tuff Torq part number, or send us a photo through the Part Finder and we'll confirm the match before you buy.

More K57 units, repair kits and parts: Tuff Torq K57 hub · All Tuff Torq

FAQ

Is this a genuine Tuff Torq part?

Yes. 787Q0324011 is new, genuine Tuff Torq, sold under Tuff Torq's own part number. It is not a rebuilt, used or aftermarket unit.

Will it fit my mower?

Fit depends on your exact model and serial number. Match the part number on your unit's label, or send us your mower details and we'll confirm for free.
