Rheem 51-102713-10 Genteq 1/3 HP Condenser Motor
Rheem 51-102713-10 Genteq 1/3 HP Condenser Motor
Regular price
$334.87 USD
Regular price
Sale price
$334.87 USD
Unit price
/
per
Couldn't load pickup availability

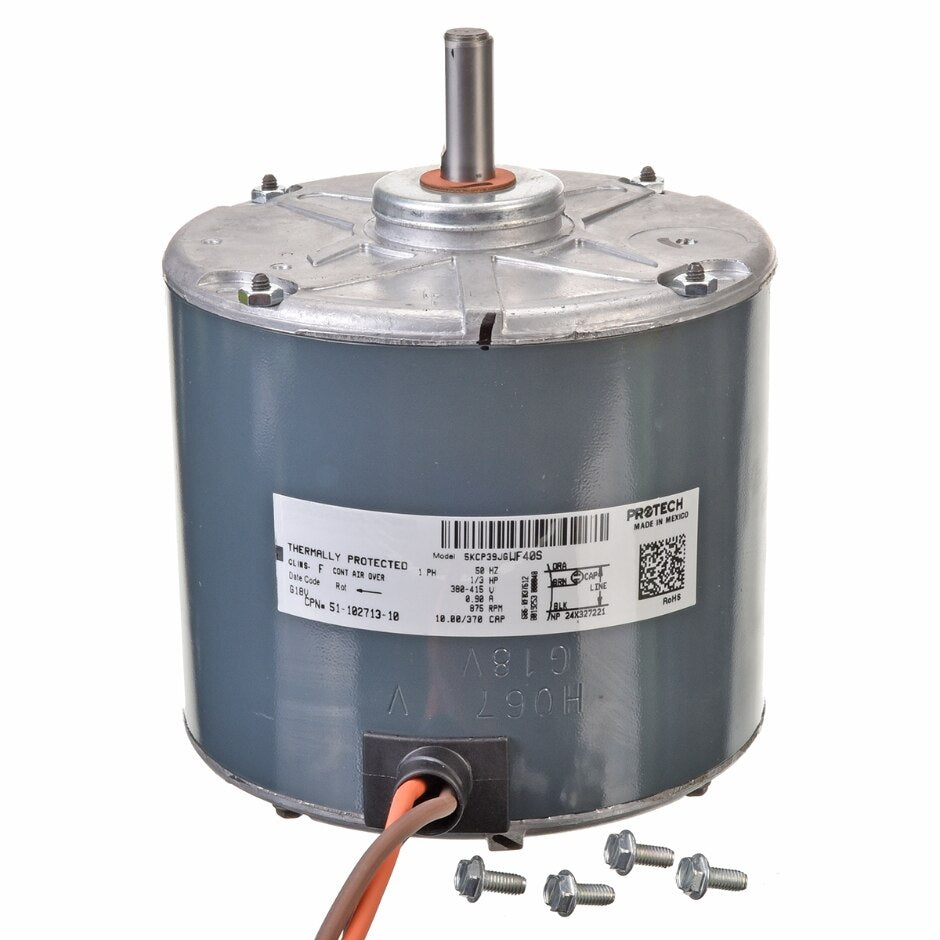

Genuine Rheem/Protech 51-102713-10 condenser motor manufactured by Genteq (model 5KCP39JGWF40S) for matched Rheem and Ruud equipment.
- 1/3 HP, 380-415 V, single-phase motor
- Single-speed 900 RPM direct-drive design
- CCW rotation viewed from the opposite shaft end
- 48 frame, ball bearing and end-boss mounting
- Requires a 10 µF/370 V run capacitor
Specifications
0.9 FLA, 50 Hz, 1/2-inch shaft diameter.
Fitment: This is equipment-specific, not universal. Confirm 51-102713-10 and the unit model/serial before ordering. Rheem lists 51-102713-07 in its replacement history.
Specifications
| Horsepower | 1/3 HP |
|---|---|
| Voltage | 380-415 V |
| Phase / speeds | 1 phase / 1 speed |
| Speed | 900 RPM |
| Frequency | 50 Hz |
| Full-load amps | 0.9 A at 380-415 V |
| Locked-rotor amps | 1.8 A at 380-415 V |
| Rotation | CCW viewed from opposite shaft end (OSE) |
| Run capacitor | 10 µF / 370 V |
| Frame / bearing | 48 frame / ball bearing |
| Shaft | 1/2 in diameter; 1-5/16 in overall length |
| Mounting | End-boss |
| Application / drive | Condenser / direct drive |
Frequently asked questions
Is this motor universal?
No. It is an OEM condenser motor; confirm part number 51-102713-10 against the equipment model and serial.
What voltage and speed does it use?
It is rated 380-415 V, single phase, 50 Hz, and one speed at 900 RPM.
What capacitor is required?
The Rheem product data specifies a 10 µF, 370 V run capacitor.
What is the rotation?
Counterclockwise when viewed from the opposite shaft end (OSE).
Does it replace an older number?
Rheem's product API lists 51-102713-07 in the replacement history.
