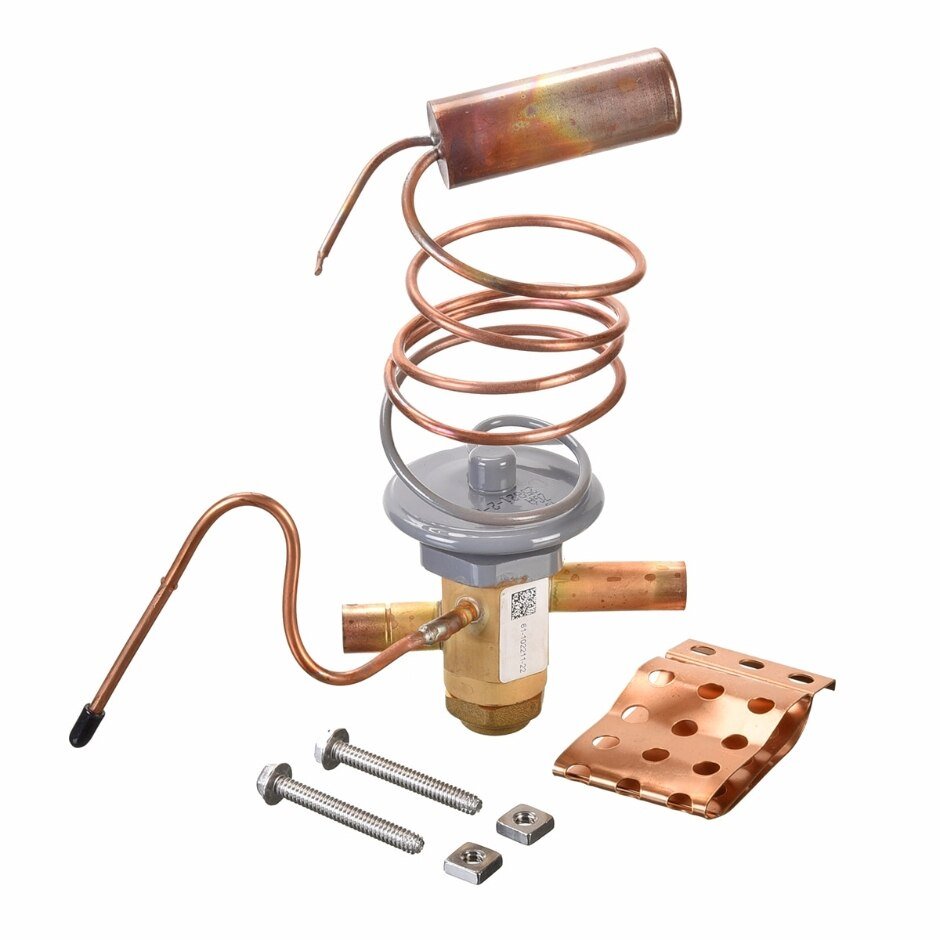

Rheem 61-102211-22 Sporlan 4-Ton TXV
Rheem 61-102211-22 Sporlan 4-Ton TXV
Couldn't load pickup availability
Genuine Rheem/ProTech 61-102211-22 thermostatic expansion valve. TrueLine identifies it as a Sporlan BBIZE / Type BBI balanced-port TXV for R-410A residential and light-commercial air conditioners and heat pumps.
- 4-ton nominal capacity (reference only)
- 3/8 in sweat inlet and outlet
- Bi-flow metering, 0% bleed, no check valve
- 30 in sensing-element capillary and 7-1/4 in external equalizer (1/8 in sweat)
- Replacement power head KT-45-ZGA
Specifications
- Type: thermostatic expansion valve (TXV)
- Refrigerant: R-410A
- Connections: 3/8 in sweat × 3/8 in sweat
- Equalizer: external, 1/8 in sweat O.D.
Fitment
The April 2015 RRRL-B parts list assigns 61-102211-22 as the TXV for 048 (4-ton) cooling capacity. Nearby suffixes (-01, -03, -04, -23, -25, -32, and others) are separately listed valves. Match the complete OEM number on the existing valve or equipment parts list before ordering. Installation requires a qualified HVAC technician.
Specifications
| Part type | Thermostatic expansion valve (TXV) |
|---|---|
| OEM / series | Rheem/ProTech 61-102211-22; Sporlan BBIZE / Type BBI (exact Sporlan suffix not published) |
| Refrigerant | R-410A |
| Nominal capacity | 4 tons (reference only) |
| Inlet | 3/8 in sweat |
| Outlet | 3/8 in sweat |
| Bi-flow metering | Yes |
| Bleed capacity | 0% |
| Check valve | No |
| Element capillary length | 30 in |
| Equalizer tube length | 7-1/4 in |
| External equalizer connection | 1/8 in sweat O.D. |
| Replacement power head | KT-45-ZGA |
| Port / strainer | Balanced port; mesh insert strainer |
| UPC | 662766356793 |
| Documented equipment use | RRRL-B package gas-electric, 048 (4-ton) cooling capacity — parts list item 67 TXV |
Frequently asked questions
What is Rheem 61-102211-22?
It is a genuine Rheem/ProTech thermostatic expansion valve. Official TrueLine data lists it as a Sporlan BBIZE / Type BBI valve for R-410A, 4-ton nominal capacity, with 3/8 in sweat connections.
What is the exact Sporlan catalog number?
TrueLine names the valve BBIZE / Type BBI but does not publish a full Sporlan suffix for 61-102211-22. A nearby number, 61-102211-03, is sold as BBIZE-4-GA; that is a different OEM suffix and is not confirmed as this part.
Is it bi-flow, and does it have a bleed port?
TrueLine technical data lists bi-flow metering as Yes, bleed capacity 0%, and check valve No.
What connections and equalizer does it use?
3/8 in sweat inlet and outlet, a 30 in element capillary, and a 7-1/4 in external equalizer on a 1/8 in sweat O.D. connection.
Which power head replaces the element?
The published replacement power head is KT-45-ZGA.
What equipment is it documented on?
The RRRL-B package gas-electric parts list uses 61-102211-22 as the TXV for 048 (4-ton) models. Always match the complete part number on the unit; other 61-102211 suffixes are different valves.
