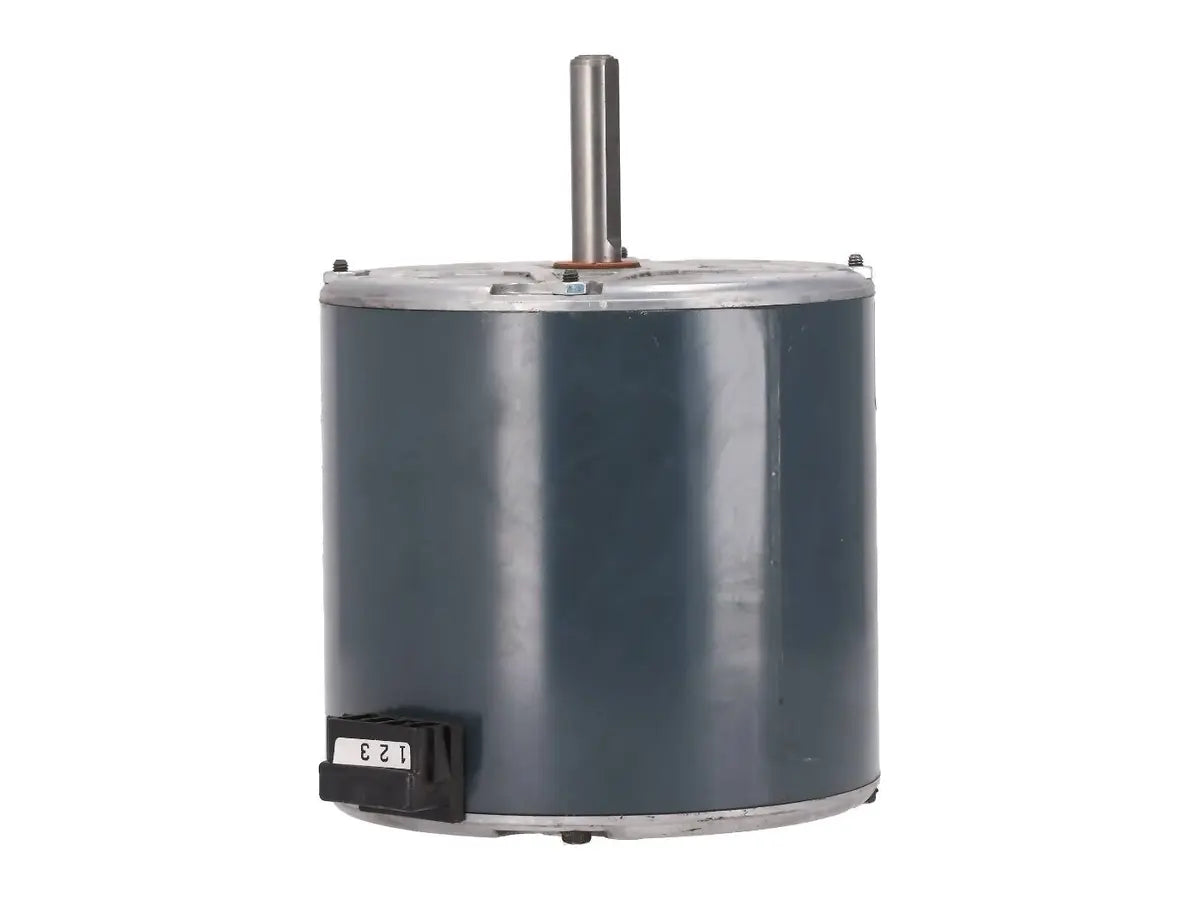

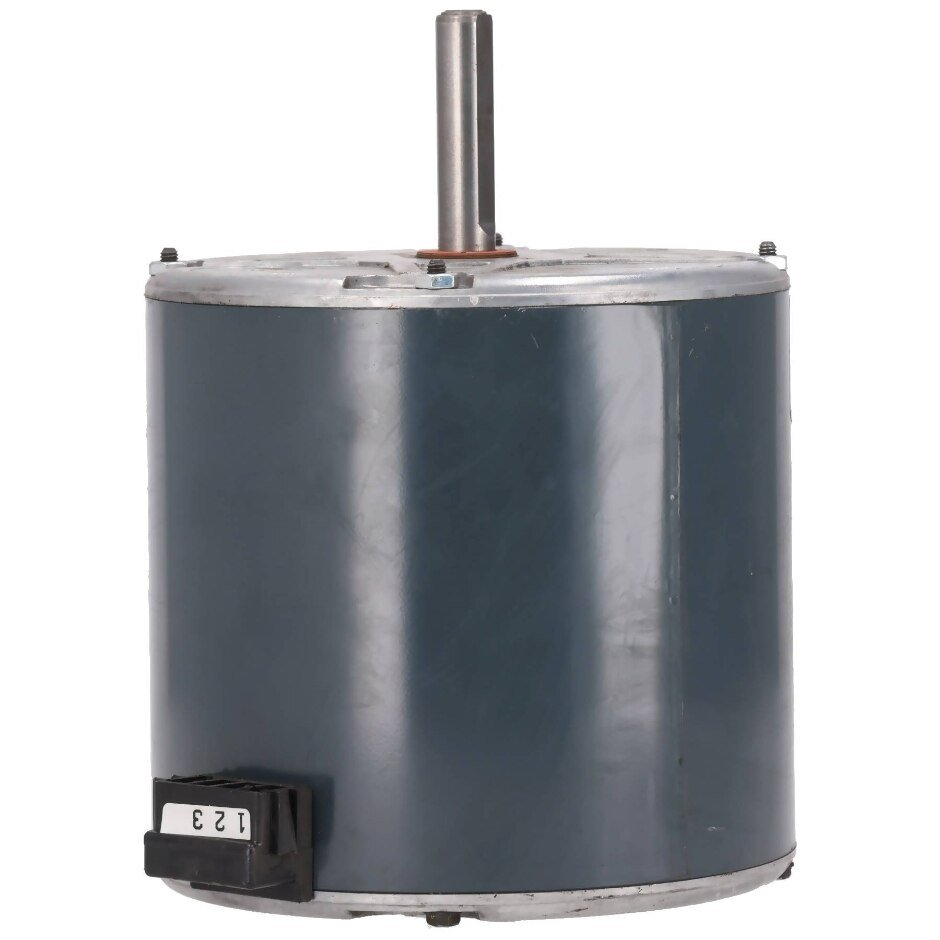

Rheem 51-42534-39 1/3 HP 460V 1075 RPM Condenser Motor
Rheem 51-42534-39 1/3 HP 460V 1075 RPM Condenser Motor
Couldn't load pickup availability
Rheem/Ruud 51-42534-39 outdoor condenser motor built for exact OEM service replacement in high-voltage HVAC equipment.
- 1/3 horsepower output
- 380-415/460V, single-phase operation
- 1075 RPM, one-speed design
Specifications
- Horsepower: 1/3 HP
- Voltage: 380-415/460V
- Frequency: 50/60 Hz
- Phase: 1
- Speed: 1075 RPM, 1 speed
Fitment
Match the exact OEM number and verify voltage, phase, RPM, shaft, rotation, mounting and capacitor requirements from the equipment before installation.
Specifications
| Horsepower | 1/3 HP |
|---|---|
| Voltage | 380-415/460V |
| Phase | Single phase |
| Frequency | 50/60 Hz |
| Speed | 1075 RPM |
| Number of speeds | 1 |
| Application | Outdoor condenser motor |
Frequently asked questions
What voltage does this motor use?
The exact-part listing specifies 380-415/460V.
What are the horsepower and speed?
It is rated 1/3 HP and 1075 RPM.
Is it single phase?
Yes. The exact-part listing specifies single-phase operation at 50/60 Hz.
How many speeds does it have?
It is listed as a one-speed condenser motor.
Is a motor-maker cross-reference available?
No reliable underlying manufacturer model cross-reference for suffix -39 was found in the fetched sources.
What else must be verified before replacement?
Verify shaft dimensions, rotation, mounting, capacitor requirements and the full equipment model; those details were not published for the exact part.
