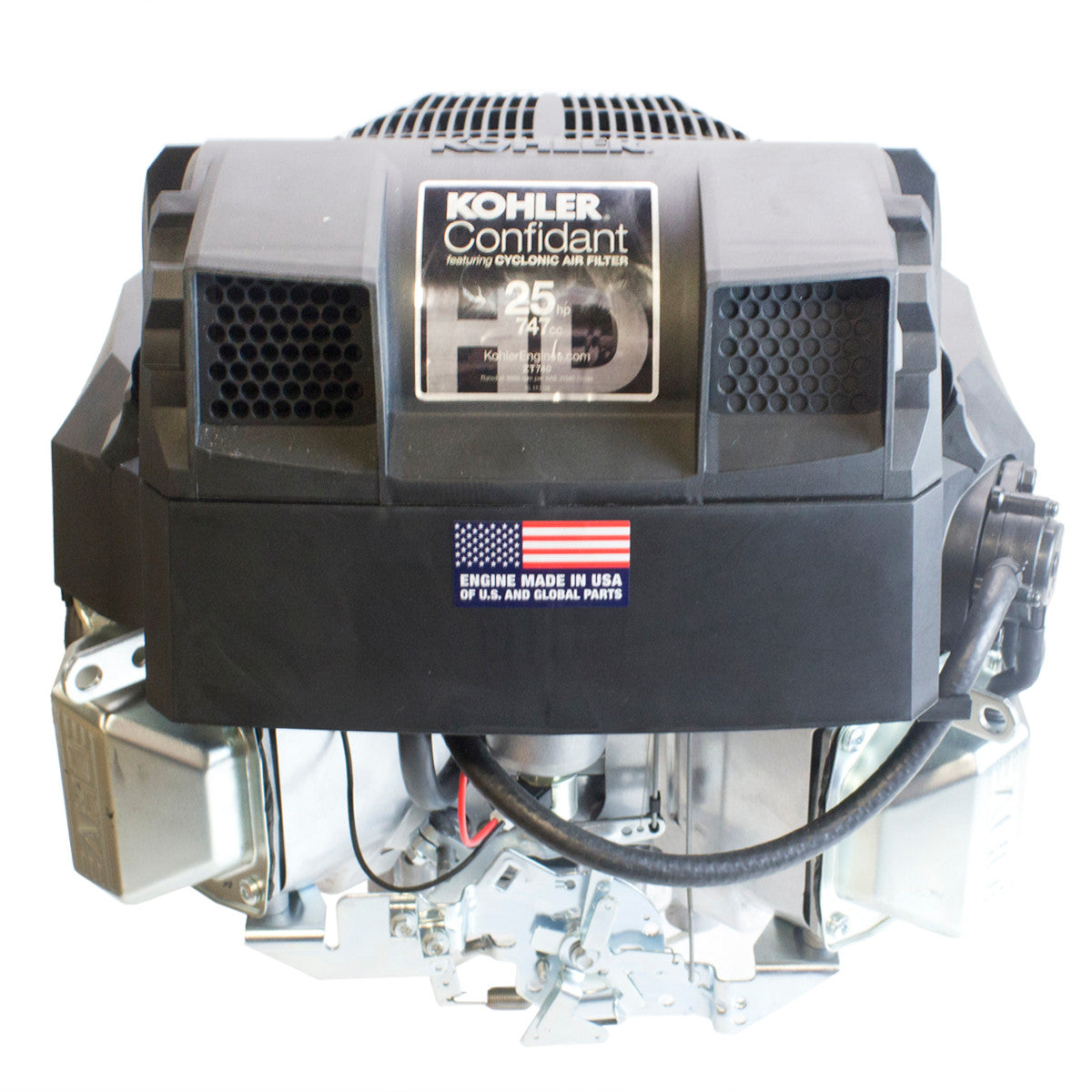

Kohler PA-ZT740-3053 25 HP Confidant Series Engine, Vertical 1-1/8x4-3/8 Shaft, Electric Start, 15 Amp Alternator Click to zoom

Kohler PA-ZT740-3053 25 HP Confidant Series Engine, Vertical 1-1/8x4-3/8 Shaft, Electric Start, 15 Amp Alternator

MPN PA-ZT740-3053

In stockEngines

Overview

The Kohler PA-ZT740-3053 is a replacement engine for outdoor power equipment: 25 HP Confidant Series Engine, Vertical 1-1/8x4-3/8 Shaft, Electric Start, 15 Amp Alternator.

Features

  • Engine Series is Kohler Confidant Series.
  • Power Rating is 25.
  • Valve Type is Overhead Valve.
  • Mounting is Vertical.
  • Engine Displacement (cc) is 747.
  • Starter Type is Electric Start.
  • Alternator is 15 Amp.
  • Oil type is Rehlko (Kohler) 4 Cycle 10W-40 Synthetic (OCK-RKC-10440).
  • Oil Refill Capacity is 2.0 qt (1.9 L).
  • Shaft Size is 1-1/8"Dx4-5/16"L.
  • Fuel Pump is Yes.
  • Throttle Type is Remote.

Specifications

Brand Kohler
MPN PA-ZT740-3053
Category Engines
Weight 116.00 LBS
Engine Series Kohler Confidant Series
Power Rating 25
Valve Type Overhead Valve
Sleeved Bore Yes
Mounting Vertical
Engine Displacement (cc) 747
Starter Type Electric Start
Alternator 15 Amp
Oil type Rehlko (Kohler) 4 Cycle 10W-40 Synthetic (OCK-RKC-10440)
Oil Refill Capacity 2.0 qt (1.9 L)
Shaft Size 1-1/8"Dx4-5/16"L
Fuel Pump Yes
Muffler Not Included
Throttle Type Remote

Fitment

Confirm manufacturer part number PA-ZT740-3053 (Kohler) against the model and serial plate on your equipment and the part being replaced. Source specifications call out engine series Kohler Confidant Series; mounting Vertical; engine displacement (cc) 747; starter type Electric Start.

Frequently Asked Questions

What part number is this engines?

The manufacturer part number is PA-ZT740-3053, brand Kohler.

How do I check fitment?

Confirm manufacturer part number PA-ZT740-3053 (Kohler) against the model and serial plate on your equipment and the part being replaced. Source specifications call out engine series Kohler Confidant Series; mounting Vertical; engine displacement (cc) 747; starter type Electric Start.

What is the engine displacement?

Engine Displacement (cc) is listed as 747.

What shaft size does this use?

Shaft Size: 1-1/8"Dx4-5/16"L.

What warranty is stated for this item?

3-Year Engine Manufacturer Warranty.
