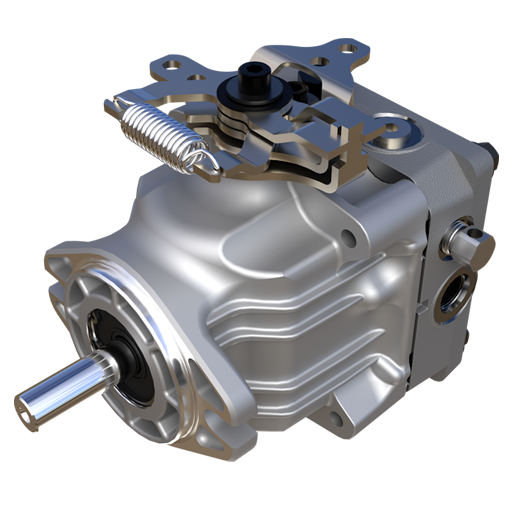

Hydro-Gear P Series pump — PG-3KCC-NV1B-XXXX (representative image) Click to zoom

Hydro-Gear PG-3KCC-NV1B-XXXX PG Series Hydraulic Pump

MPN PG-3KCC-NV1B-XXXX

Free shippingIn stockHydraulic Pump

Overview

Hydro-Gear PG-3KCC-NV1B-XXXX is a genuine Hydro-Gear PG Series hydraulic pump. Hydro-Gear P Series pumps are commercial axial-piston, variable-displacement pumps — "smooth, efficient, and maintenance-free."

Order by the full model number on the Hydro-Gear label (PG-3KCC-NV1B-XXXX). Hydro-Gear builds each model to an OEM specification and advises against substituting a different model, so match every character; zero-turns use a left and a right unit — check which side you need.

More on this series: Hydro-Gear pump guide · Shop all Hydro-Gear pumps

Specifications

Brand Hydro-Gear (genuine)
Model / part number PG-3KCC-NV1B-XXXX
Series PG Series pump
Type Hydraulic Pump
Displacement 10.2 cc (0.62 in³) (series spec)
Input speed 3600 rpm max, 1800 rpm min (series spec)
Pressure (continuous / intermittent / peak) 1000 / 2100 / 3500 psi (series spec)
Flow at 1000 psi, 3000 rpm 7.6 gpm (series spec)
Older Hydro-Gear name BDP-10A (series)
Fluid Engine oil, min. 55 SUS (9.0 cSt) at 230 °F, API SJ/CD; follow the vehicle maker (series spec)
Inlet filtration 25 micron nominal; inlet filter required (series spec)

Service notes

  • Fluid: engine oil with a minimum of 55 SUS (9.0 cSt) at 230 °F and API SJ/CD; follow the vehicle manufacturer's recommendation. An inlet filter is required (25 micron nominal).
  • Bypass: a screw-type valve, opened no more than two turns to move the machine; keep it fully closed (clockwise) in normal operation.
  • After installing, purge air from the system following Hydro-Gear's procedure: drive wheels off the ground, cycle forward/reverse 5–6 times with the bypass open, then 5–6 times closed, and keep the reservoir topped up until the level stays constant.

Shipping

  • Free shipping (lower 48). Ships from distributor stock.

Frequently asked questions

Where do I find my Hydro-Gear model number?

On the Hydro-Gear label on the unit (on the pump housing). Current numbers look like PC-AGCC-MV1X-XXXX. See how to find your Hydro-Gear part number.

Can I use a different model that looks the same?

Hydro-Gear strongly discourages using any model not originally specified by the mower maker; similar-looking units can differ internally. Order the exact number on your label.
