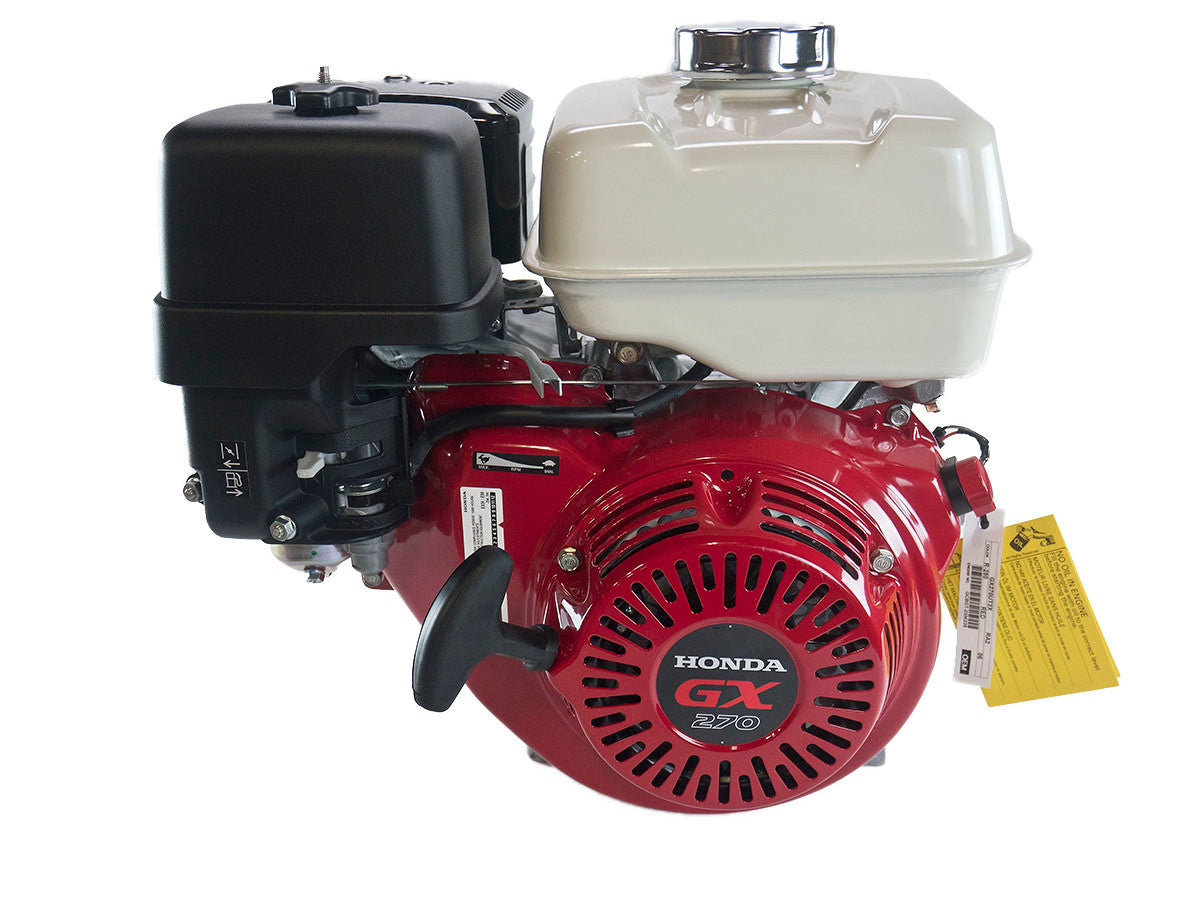

Honda GX270UT2XRA2 8.5 Net Power Engine, Horizontal 22MM Keyed Shaft, 2:1 Gear Reduction with Wet Clutch, Rev Limiter (49-State Emissions) Click to zoom

Honda GX270UT2XRA2 8.5 Net Power Engine, Horizontal 22MM Keyed Shaft, 2:1 Gear Reduction with Wet Clutch, Rev Limiter (49-State Emissions)

MPN GX270UT2XRA2

In stockTrack Engines

Overview

The Honda GX270UT2XRA2 is a Track Engines for outdoor power equipment: 8.5 Net Power Engine, Horizontal 22MM Keyed Shaft, 2:1 Gear Reduction with wet clutch, Rev Limiter (49-State Emissions).

Features

  • Engine Series is Honda GX Commercial Series.
  • Power Rating is 8.5.
  • Valve Type is Overhead Valve.
  • Mounting is Gear Reduction.
  • Engine Displacement (cc) is 270.
  • Starter Type is Recoil Start.
  • Low Oil Shutdown is Yes (Low oil sensor may have to be disconnected to prevent engine stops during angled operation equipment like tillers.).
  • Oil type is SAE 10w-30.
  • Oil Refill Capacity is 1.2 qt (1.1 L).
  • Shaft Size is 22mmDx2"L.
  • Fuel Tank Capacity is 6.0 qt (5.7 L).
  • Throttle Type is Manual.

Specifications

Brand Honda
MPN GX270UT2XRA2
Category Track Engines
Weight 83.30 LBS
Engine Series Honda GX Commercial Series
Power Rating 8.5
Valve Type Overhead Valve
Sleeved Bore Yes
Mounting Gear Reduction
Engine Displacement (cc) 270
Starter Type Recoil Start
Low Oil Shutdown Yes (Low oil sensor may have to be disconnected to prevent engine stops during angled operation equipment like tillers.)
Oil type SAE 10w-30
Oil Refill Capacity 1.2 qt (1.1 L)
Shaft Size 22mmDx2"L
Fuel Tank Capacity 6.0 qt (5.7 L)
Gear Reduction 2:1 Clutch
Muffler Included

Fitment

Confirm manufacturer part number GX270UT2XRA2 (Honda) against the model and serial plate on your equipment and the part being replaced. Source specifications call out engine series Honda GX Commercial Series; mounting Gear Reduction; engine displacement (cc) 270; starter type Recoil Start.

Frequently Asked Questions

What part number is this track engines?

The manufacturer part number is GX270UT2XRA2, brand Honda.

How do I check fitment?

Confirm manufacturer part number GX270UT2XRA2 (Honda) against the model and serial plate on your equipment and the part being replaced. Source specifications call out engine series Honda GX Commercial Series; mounting Gear Reduction; engine displacement (cc) 270; starter type Recoil Start.

What is the engine displacement?

Engine Displacement (cc) is listed as 270.

What shaft size does this use?

Shaft Size: 22mmDx2"L.

What warranty is stated for this item?

3-Year Engine Manufacturer Warranty.
