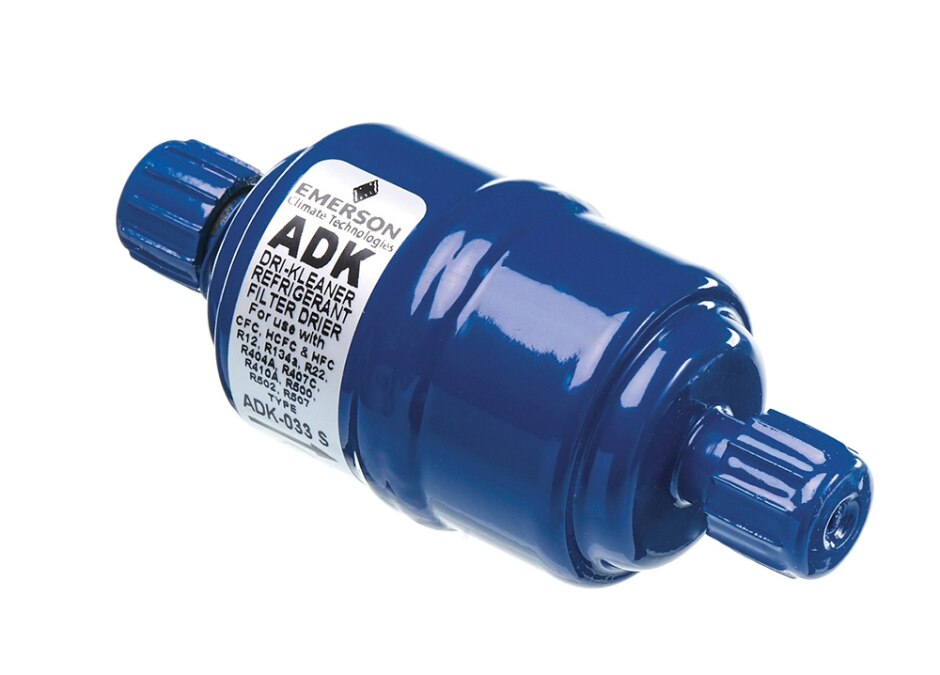

Emerson ADK-033S 3/8 in Liquid Line Filter Drier
Emerson ADK-033S 3/8 in Liquid Line Filter Drier
Couldn't load pickup availability
Emerson/Copeland ADK-033S (catalog 053172; Rheem distributor number 83-ADK-033S) is a compact uni-directional liquid-line filter drier for 3/8-inch ODF sweat connections.
- Solid core with activated alumina and molecular sieve
- High moisture and acid removal capacity
- 40-micron filtration
- 680 psig maximum working pressure
- Corrosion-resistant epoxy powder finish
Specifications
3 cubic-inch core, 4-1/16-inch overall length, 1-3/4-inch body diameter, rated 3.3 tons at a 1 psi pressure drop for R-22 and R-410A.
Fitment: Verify refrigerant approval, 3/8-inch ODF connection, flow direction and system capacity. Installation requires qualified refrigeration brazing and system evacuation practices.
Specifications
| Connection | 3/8 in sweat ODF |
|---|---|
| Flow / location | Uni-directional / liquid line |
| Core / desiccant | Solid core; activated alumina with molecular sieve |
| Capacity | 3 cubic in |
| Working pressure | 680 psig |
| Filtration | 40 microns |
| Overall size | 4-1/16 in long; 1-3/4 in body diameter; 2-9/16 in body length |
| ARI flow capacity | 3.3 tons at 1 psi drop for R-22 and R-410A |
| Refrigerants | R-22 and R-410A; TrueLine description also states suitable for R454B |
| Finish | Corrosion-resistant epoxy powder paint |
| Approval | UL/CUL file SA 3124 |
Frequently asked questions
Is ADK-033S bi-flow?
No. The manufacturer/distributor data identifies it as uni-directional; observe the flow arrow during installation.
What connection does it use?
3/8-inch sweat ODF copper connections.
What is the manufacturer number?
ADK-033S is the model/industry code and 053172 is the Emerson/Copeland catalog number; Rheem distribution uses 83-ADK-033S.
What is the maximum working pressure?
680 psig.
Which refrigerants are listed?
The detailed data lists R-22 and R-410A, and the current TrueLine description also states suitability for R454B. Confirm current system and refrigerant requirements before use.
