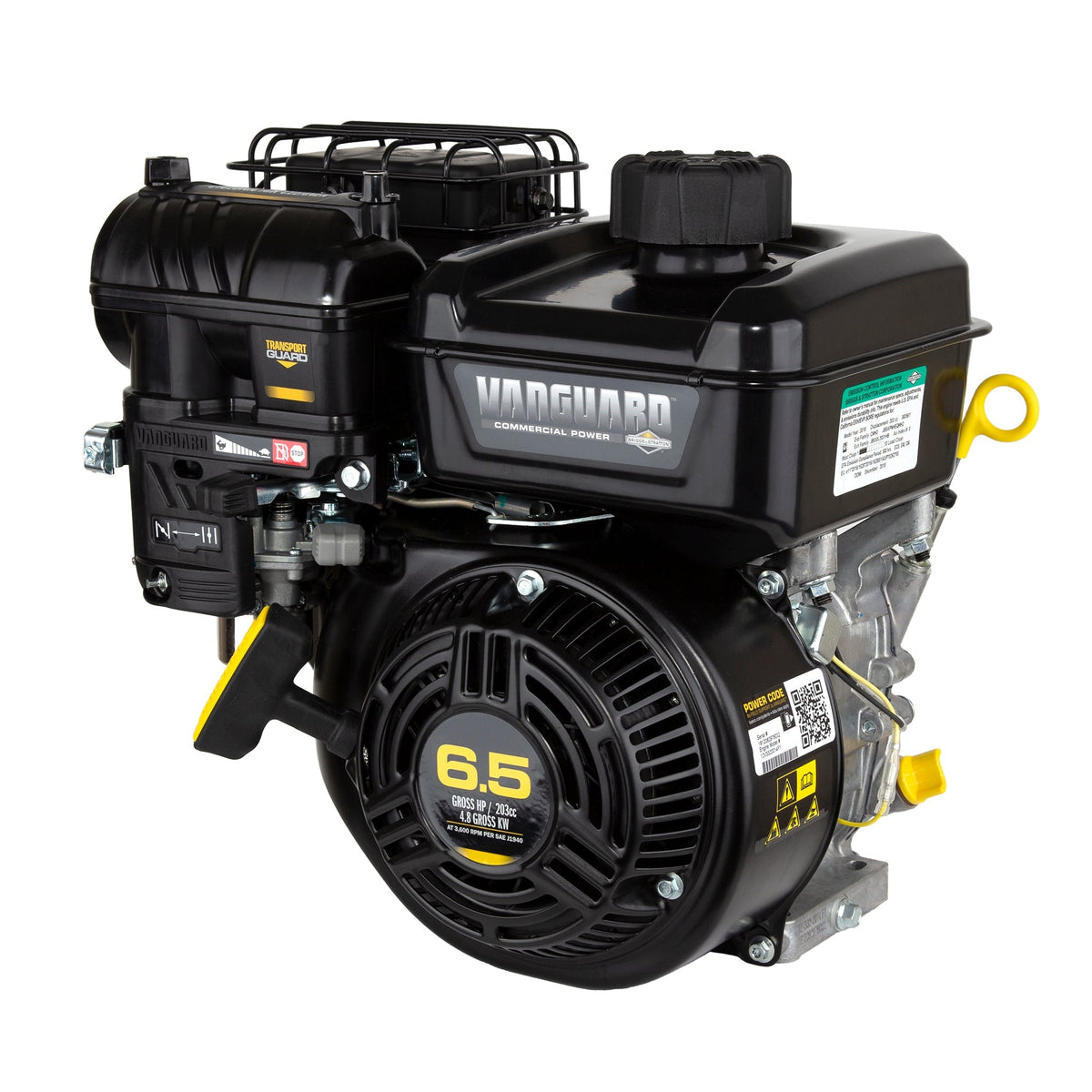

Briggs & Stratton 12V332-0014-F1 Vanguard 6.5 HP 203cc Horizontal Engine, 1" x 2-7/8" Shaft

🚚 Flat-rate shipping: $100 to the lower 48 states + DC. Need it fast? Choose Expedited or Need It Fast at checkout.

Genuine Briggs & Stratton Vanguard 203cc single-cylinder horizontal-shaft engine. Modern OHV replacement for older Briggs 12-series horizontal engines (e.g. 122012, 135212) with the same mounting footprint and crankshaft dimensions. 3-in-1 controls with TransportGuard, integrated cyclonic air filtration, 1-pull starting down to -20°F. Commercial-grade Vanguard construction.

Specifications

• Power: 6.5 HP
• Displacement: 203cc, single cylinder, OHV
• Shaft: Horizontal, 1" x 2-7/8", 1/4" keyway, drilled & tapped 3/8-24
• Starter: Recoil (1-pull)
• Maximum RPM: 3600
• Oil capacity: 20 oz
• Air cleaner: Integrated cyclonic
• EPA compliant
• Shipping weight: 46 lb

Fit note: mounting footprint and crankshaft match the original, but the overall engine size is different. Compare the dimension drawing (second image) against your equipment for clearance before ordering.

Replacement engines are specific to your original model number. This engine was matched to your original by the Briggs & Stratton engine replacement team; see your quote email for fit notes.
